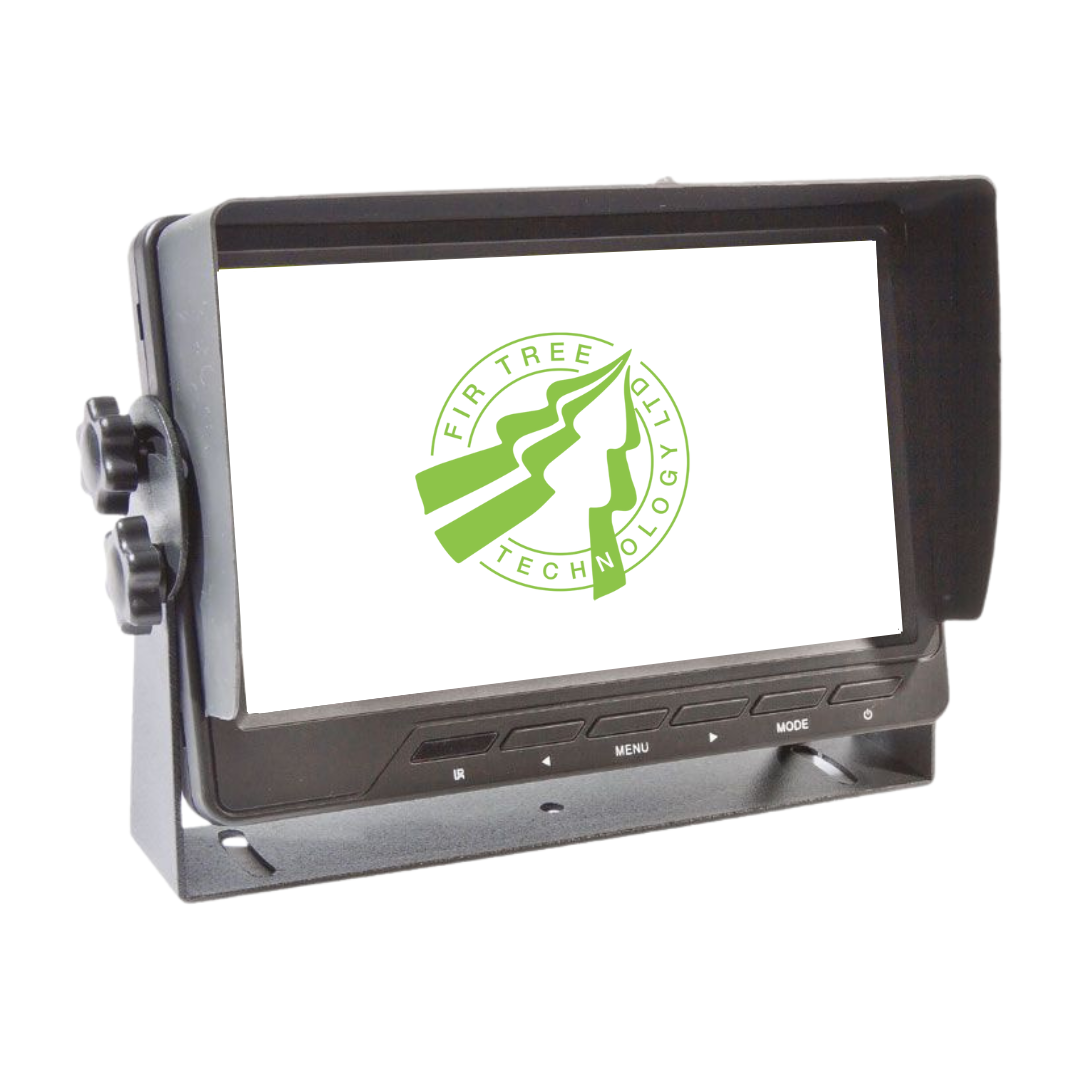

7" AHD Dash Mount Monitor

7" AHD Dash Mount Monitor – Triple Input with Camera Power (180mm)

Built for high-definition clarity, multi-camera integration, and in-cab control – this 7" AHD dash-mounted monitor supports AHD, PAL, and NTSC formats and is ideal for commercial vehicles, HGVs, and fleet camera systems.

Key Features:

• 7” Digital Display – crisp 1024 × 600 resolution with 16:9 aspect ratio
• AHD / PAL / NTSC Compatible – supports a full range of video inputs for system flexibility
• 3 x 4-Pin Aviation Inputs – connect up to three compatible cameras
• 3 Trigger Inputs – automatically switch views based on indicator, reverse, or custom input
• Brightness – 400cd/m² for excellent visibility in daylight conditions
• Contrast Ratio – 500:1 for sharp, balanced image quality
• Viewing Angle – U: 50° / D: 70° / R/L: 70° / 70°
• Camera Power Output – monitor can power connected cameras directly
• Voltage – 12V / 24V DC for wide vehicle compatibility
• Slim Design – compact dash mount for seamless in-cab integration

Dimensions:
180mm (W) x 23mm (D) x 120mm (H)
