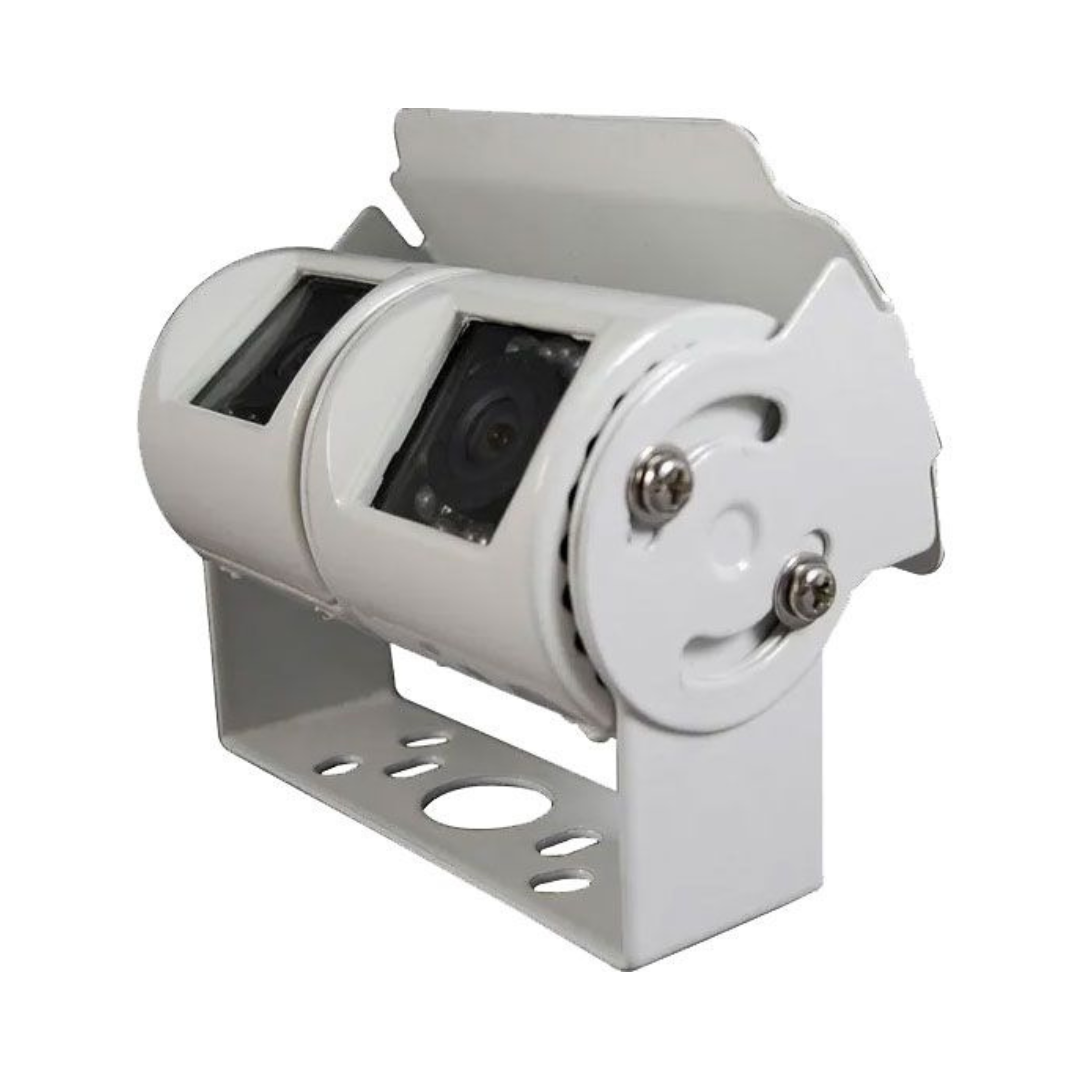

AHD Dual Rear Vehicle Camera (4 Pin)

AHD Dual Camera – 720p with Dual 4-Pin Aviation Inputs (IP67 Rated)

Built for high-definition monitoring, rugged reliability, and wide coverage – this AHD dual camera delivers crisp 720p video from two lenses in one housing, making it perfect for rear and side-view applications on commercial and plant vehicles.

Key Features:

• Resolution: AHD 720p – delivers clear, high-definition video output
• TV System: PAL – compatible with standard vehicle AHD monitor systems
• Dual 4-Pin Aviation Connectors – independent video output for each camera
• Power Input via 4-Pin Aviation – simplifies integration with vehicle systems
• Operating Voltage – 12V DC with max 300mA power draw
• Weatherproof Rating – IP67 rated for full protection against dust and water
• Operating Temperature – suitable for harsh conditions: -30°C to +70°C
• Operating Humidity – up to 95% RH for all-weather performance
• Durable, Dual-Lens Design – ideal for monitoring separate angles from one mounting point

Dimensions (including mount):
104mm (W) x 66mm (D) x 97mm (H)
