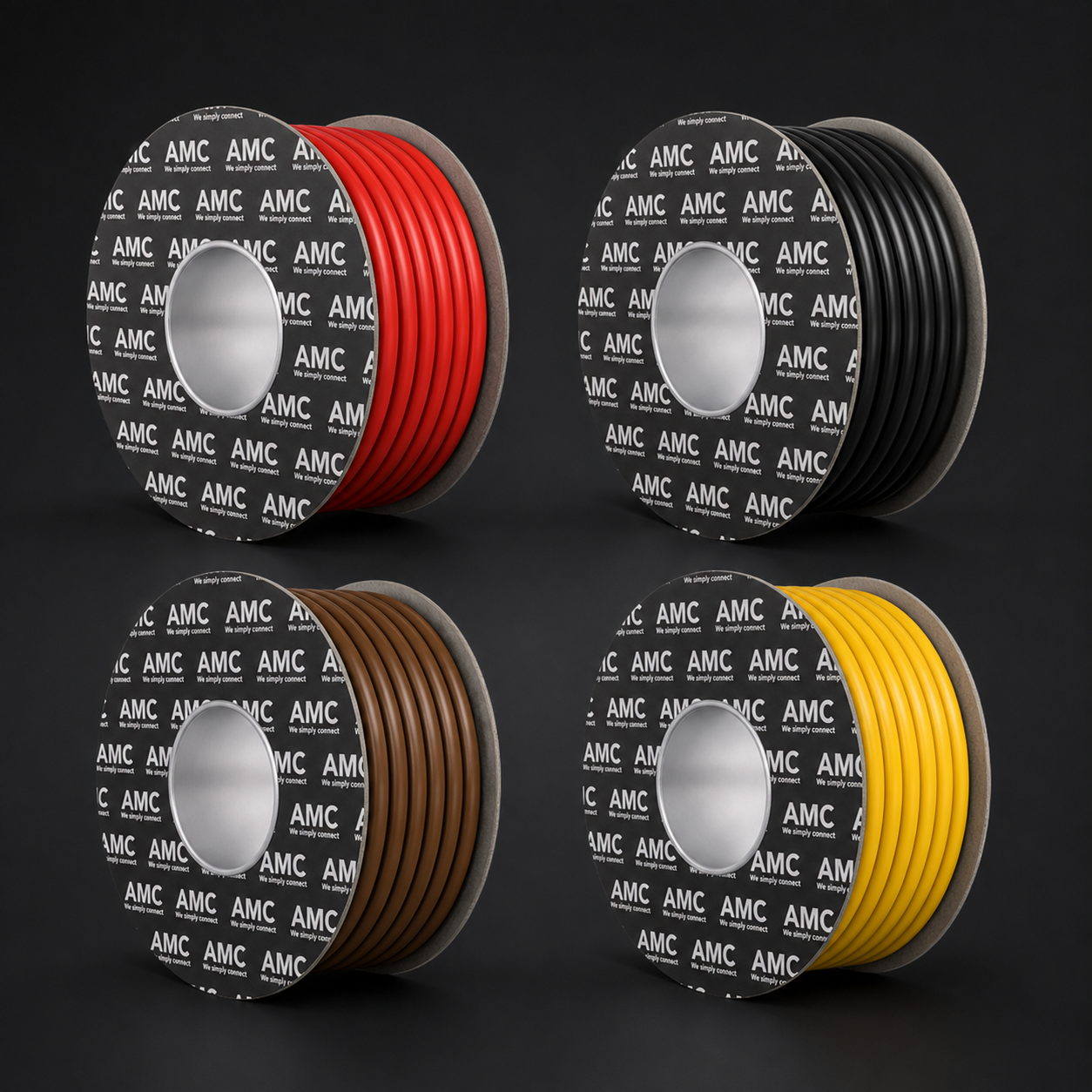

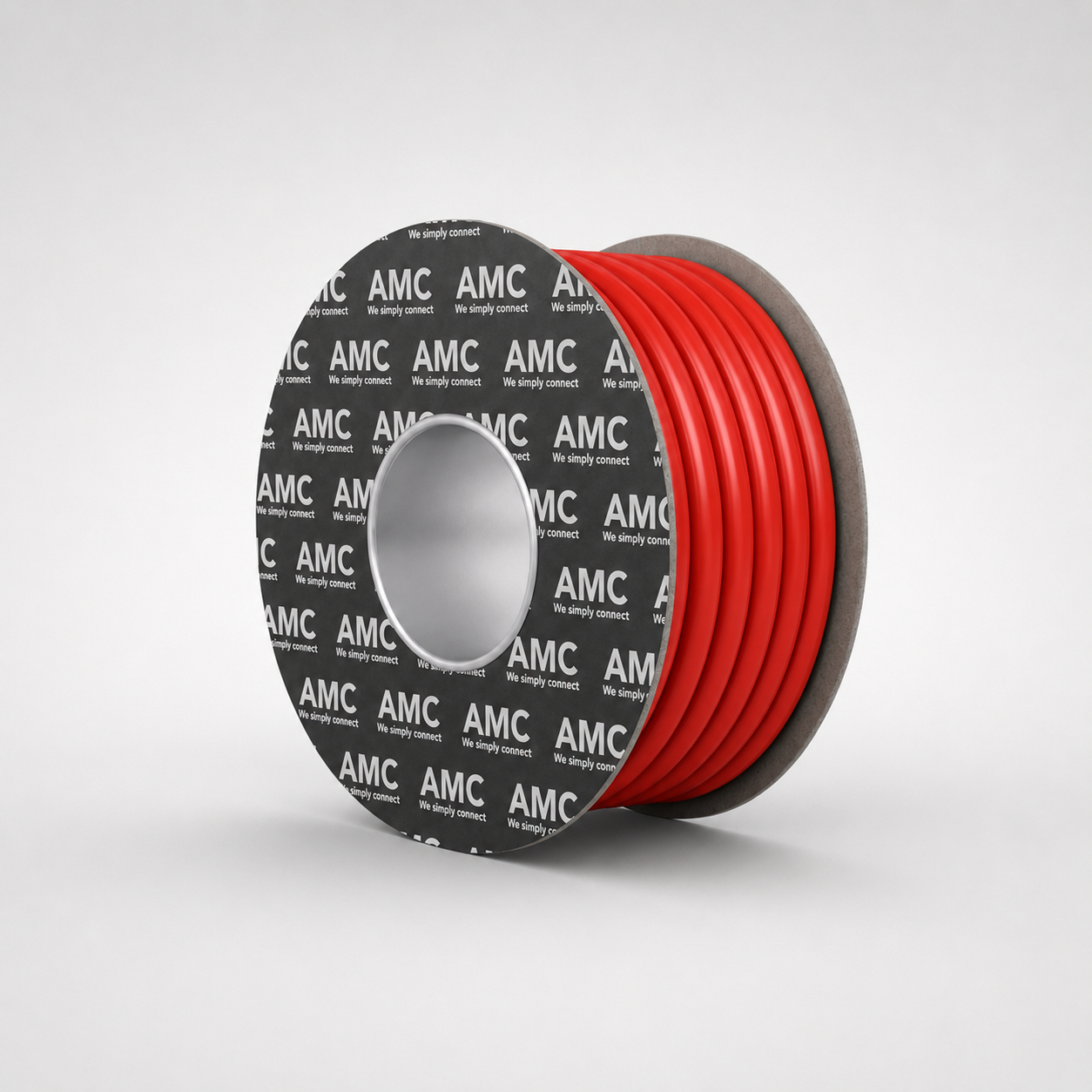

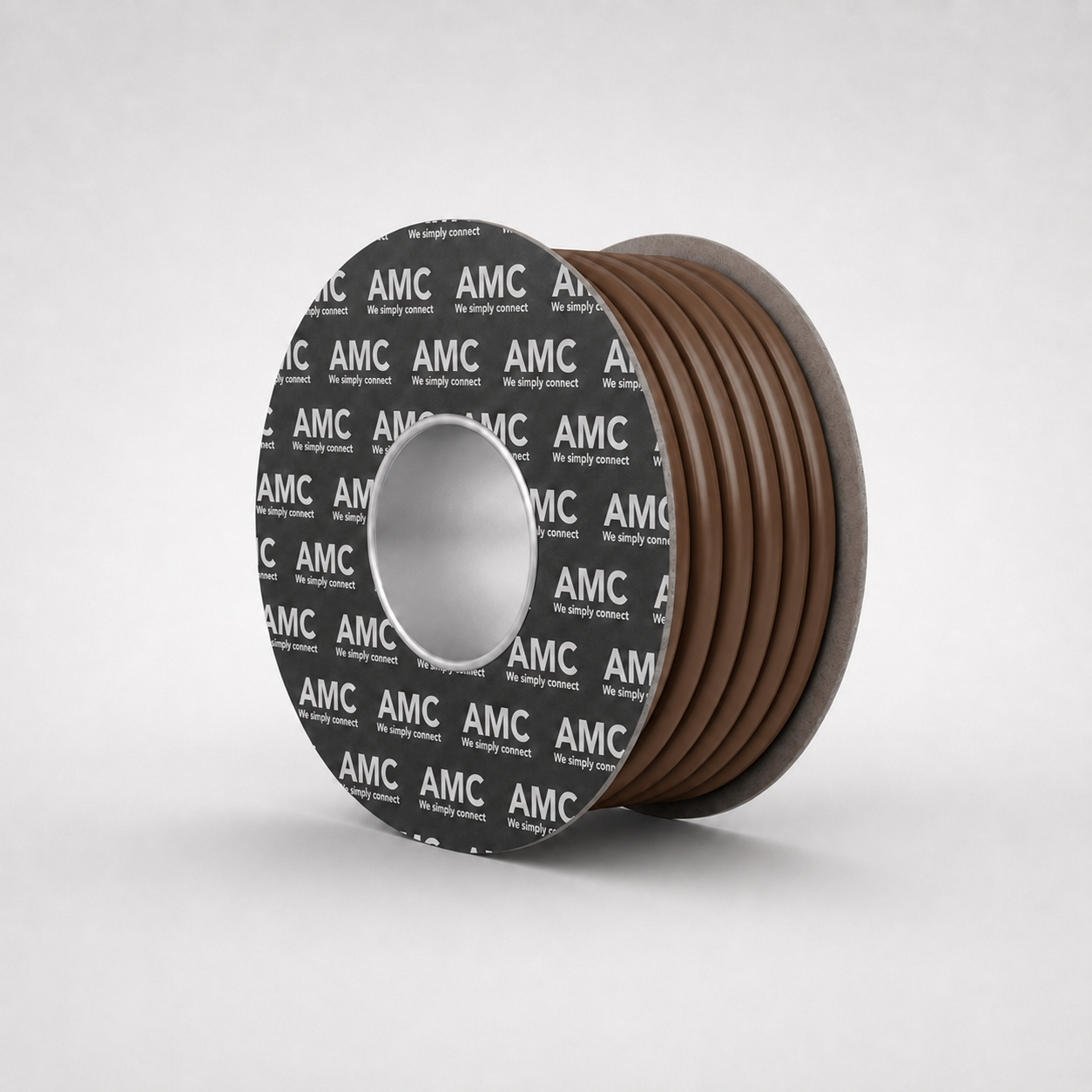

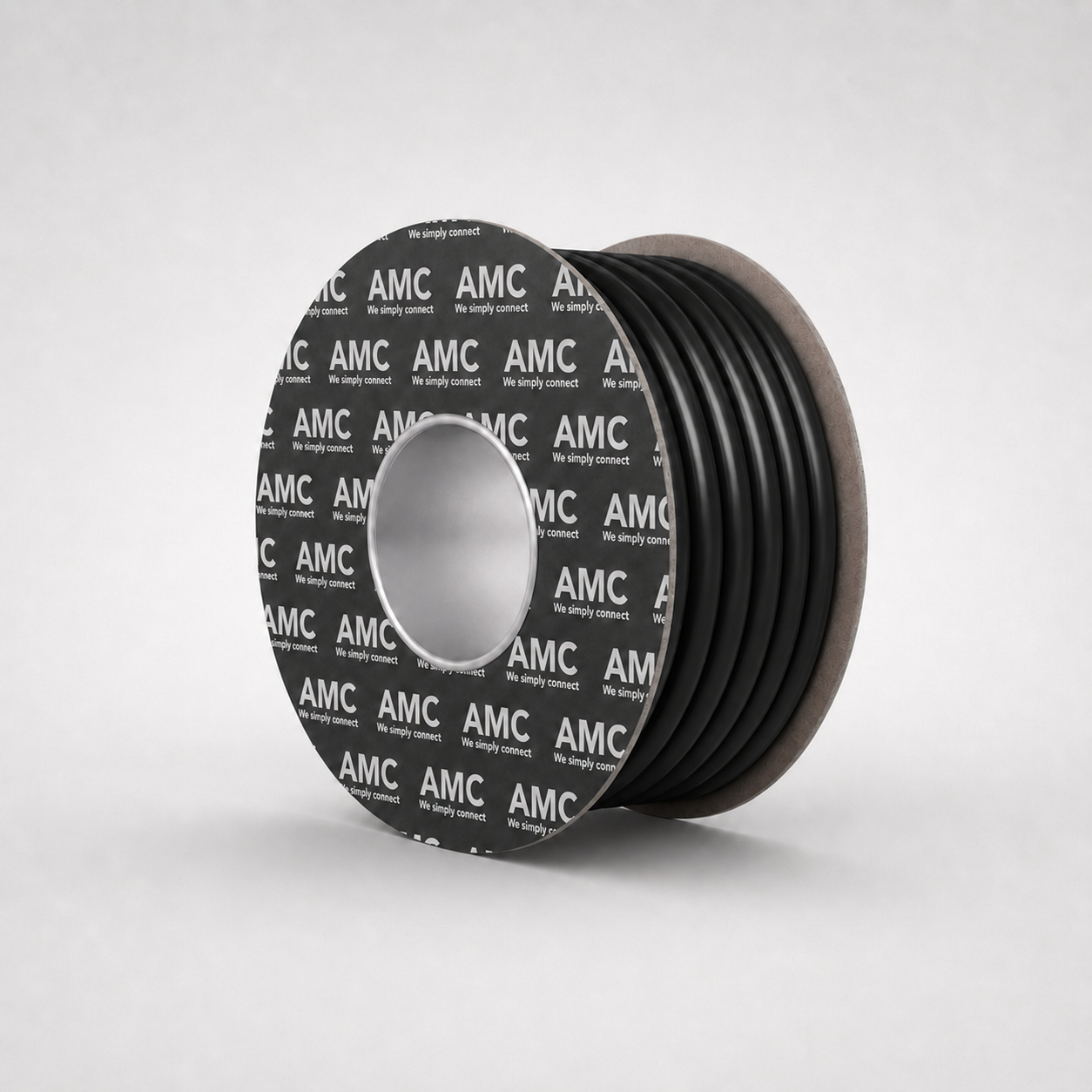

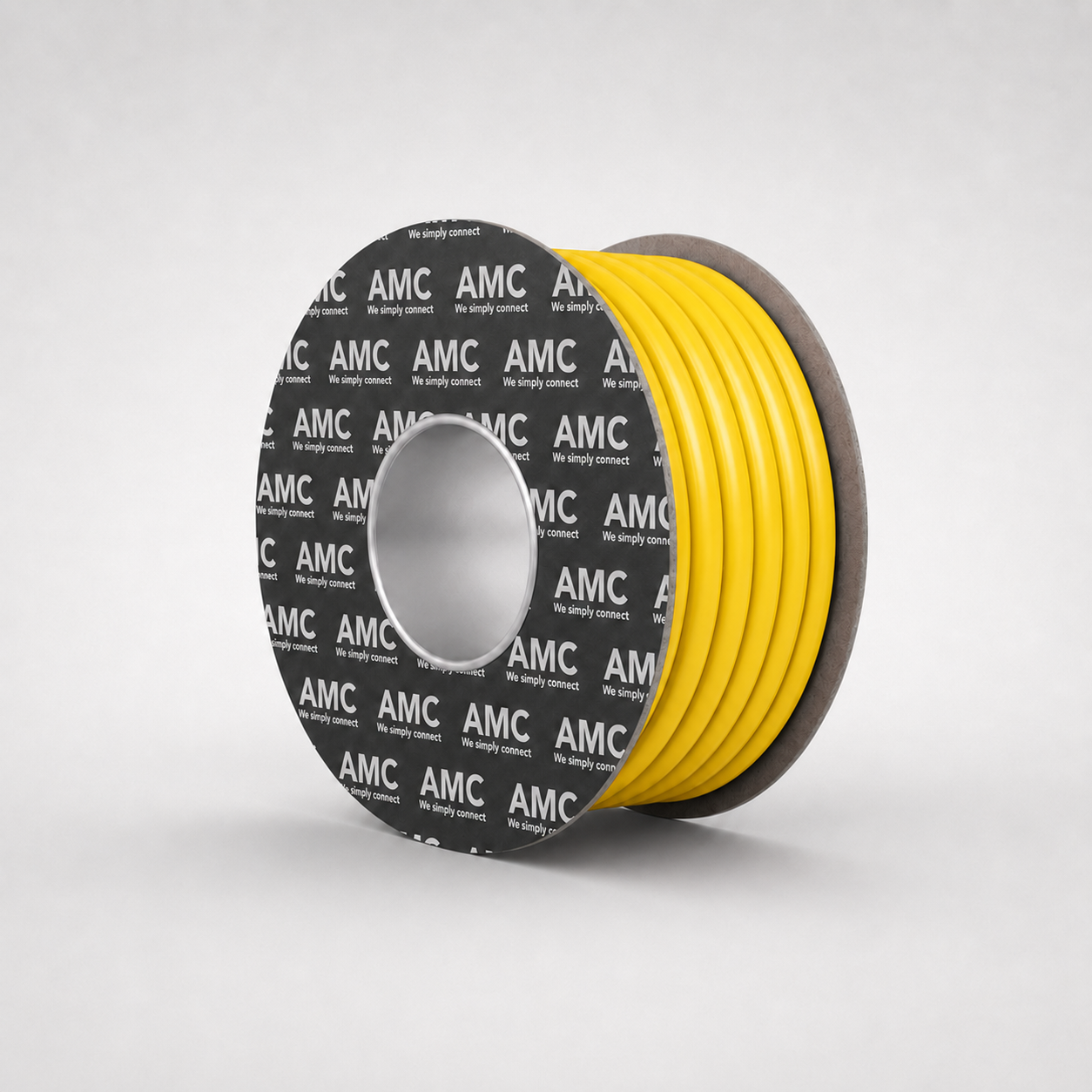

Genuine AMC 8.5mm² Thin-Wall Automotive Cable – 63A

Genuine Auto Marine Cable -

8.5mm² thin-wall cable is a high-performance, UK-manufactured automotive wire designed for higher-current, low-voltage vehicle and marine electrical installations.

Its reduced thin-wall insulation saves weight and space compared with conventional automotive cable. The hard-grade PVC insulation provides good resistance to abrasion, cut-through, petrol, diesel, lubricating oils and dilute acids.

The flexible stranded plain-copper conductor is suitable for high-current vehicle equipment, power distribution, auxiliary systems and other demanding applications in cars, vans, HGVs, trailers, plant machinery and boats.

Product specifications:

• Manufacturer: Auto Marine Cables (AMC)
• Conductor size: 8.5mm²
• Current rating: 63A
• Maximum load: 756W at 12V or 1,512W at 24V
• Suitable for 12V and 24V systems
• Maximum voltage: 60V
• Conductor construction: 120 × 0.30mm
• Conductor material: Plain copper
• Insulation: Hard-grade PVC
• Maximum overall diameter: 5.50mm
• Maximum resistance at 20°C: 0.00220Ω per metre
• Temperature range: -40°C to +105°C
• Brief temperature excursions: Up to +120°C
• Manufactured to ISO 6722-1:2011 Class B
• Plain-copper conductor manufactured to BS EN 60228:2005
• Made in the UK
