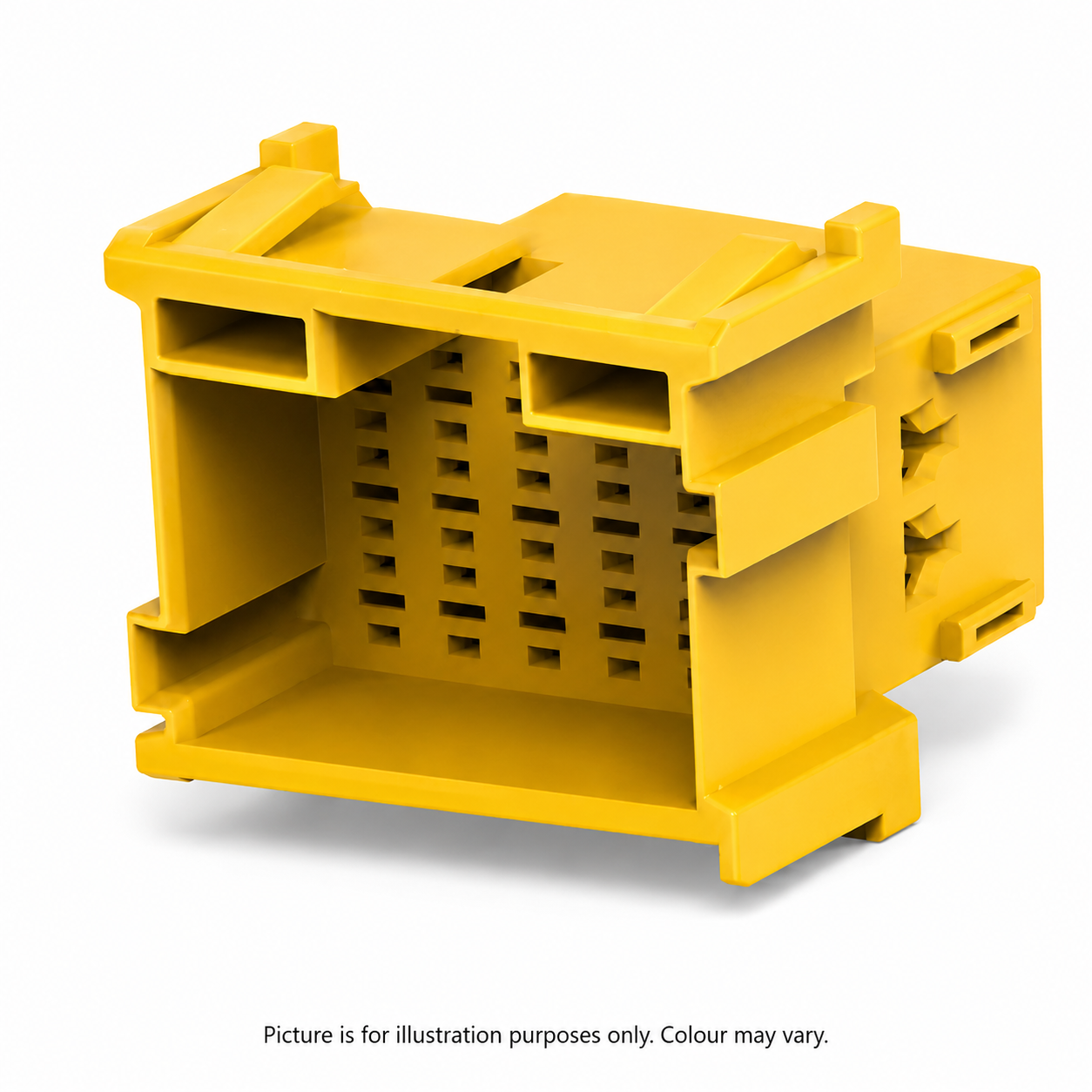

18-way male automotive connector housing – picture for illustration purposes only, colour may vary

Fir Tree Technology

18 Way Male Automotive Connector Housing – 2.8mm Multi Colour FMS

£2.33

Excluding VAT. Shipping calculated at checkout.

Quantity

✓

Professional-grade productsSelected and tested by vehicle installers

✓

Expert supportPractical advice from the Fir Tree team

✓

Secure checkoutSafe online payment through Shopify

Delivery and support+

Delivery options are shown at checkout. If you need help confirming compatibility before ordering, contact the Fir Tree team.

Not sure whether this product is right for your vehicle?

Ask Fir Tree →

Product details

The 18 Way Male Automotive Connector Housing provides a strong and reliable connection for automotive wiring looms, vehicle electrical systems and commercial vehicle installations.

Manufactured from durable glass-filled polyamide, this yellow connector housing accepts 18 male 2.8mm terminals arranged across three rows. Its keyed design helps prevent incorrect mating, while the integrated locking mechanism keeps the connected housing securely in place.

Designed for 12V and 24V wire-to-wire applications, it is suitable for cars, vans, HGVs, trailers, plant machinery and other automotive electrical projects.

Key features

18-way male automotive connector housing
Accepts 2.8mm male blade terminals
Three-row terminal arrangement
Yellow glass-filled polyamide construction
Keyed design for correct connector alignment
Secure integrated locking mechanism
Straight 180° cable exit
Free-hanging cable installation
Suitable for 12V and 24V vehicle systems
Operating temperature: -40°C to +120°C
Unsealed housing
Terminals supplied separately
Specifications
- Connector type: Male automotive housing
- Number of ways: 18
- Terminal size: 2.8mm
- Number of rows: 3
- Colour: Yellow
- Pitch: 5mm
- Cable orientation: Straight / 180°
- Housing material: Glass-filled polyamide
- Operating voltage: Up to 28V DC
- Dimensions: 37.5 × 35.45 × 30.6mm
- Connection type: Wire-to-wire
- Mounting: Cable mount / free hanging
- Sealed: No
Connector housing only. Compatible terminals and mating components are sold separately.
