Part-Insulated Female Spade Terminals – Red, Blue & Yellow

Part-insulated female spade terminals for creating quick, dependable push-fit electrical connections in automotive, commercial vehicle and general wiring applications.

The colour-coded PVC sleeve insulates and supports the crimp barrel while leaving the female receptacle accessible for straightforward connection to a matching male blade. This makes components easier to install, disconnect and replace without cutting the wiring.

Key features

• Part-insulated female push-on spade terminal
• Suitable for automotive and commercial vehicle wiring
• Colour coded by compatible cable size
• Crimp termination for fast, secure installation
• Ideal for wiring looms, switches, relays and electrical accessories
• Available in packs of 10 or 100

Size guide

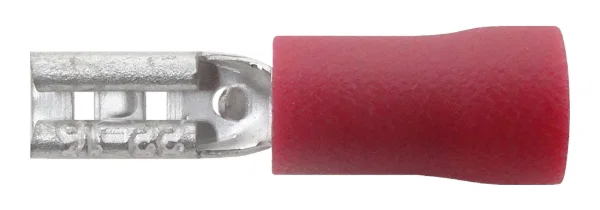

• Red: 0.5–1.5mm² cable — 2.8mm, 4.8mm or 6.3mm blade

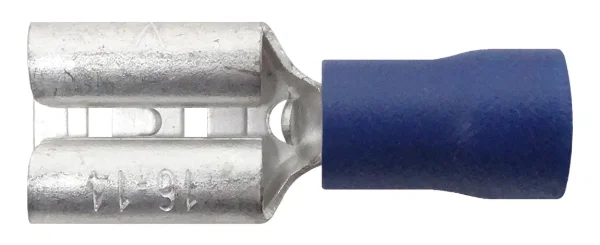

• Blue: 1.5–2.5mm² cable — 4.8mm, 6.3mm or 8.0mm blade

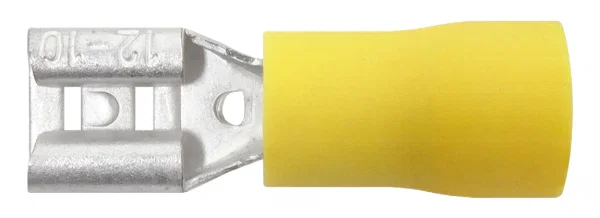

• Yellow: 4.0–6.0mm² cable — 6.3mm or 9.4mm blade

Select the required colour, blade width and pack quantity before adding to your basket. Use a suitable insulated-terminal crimping tool for installation.
