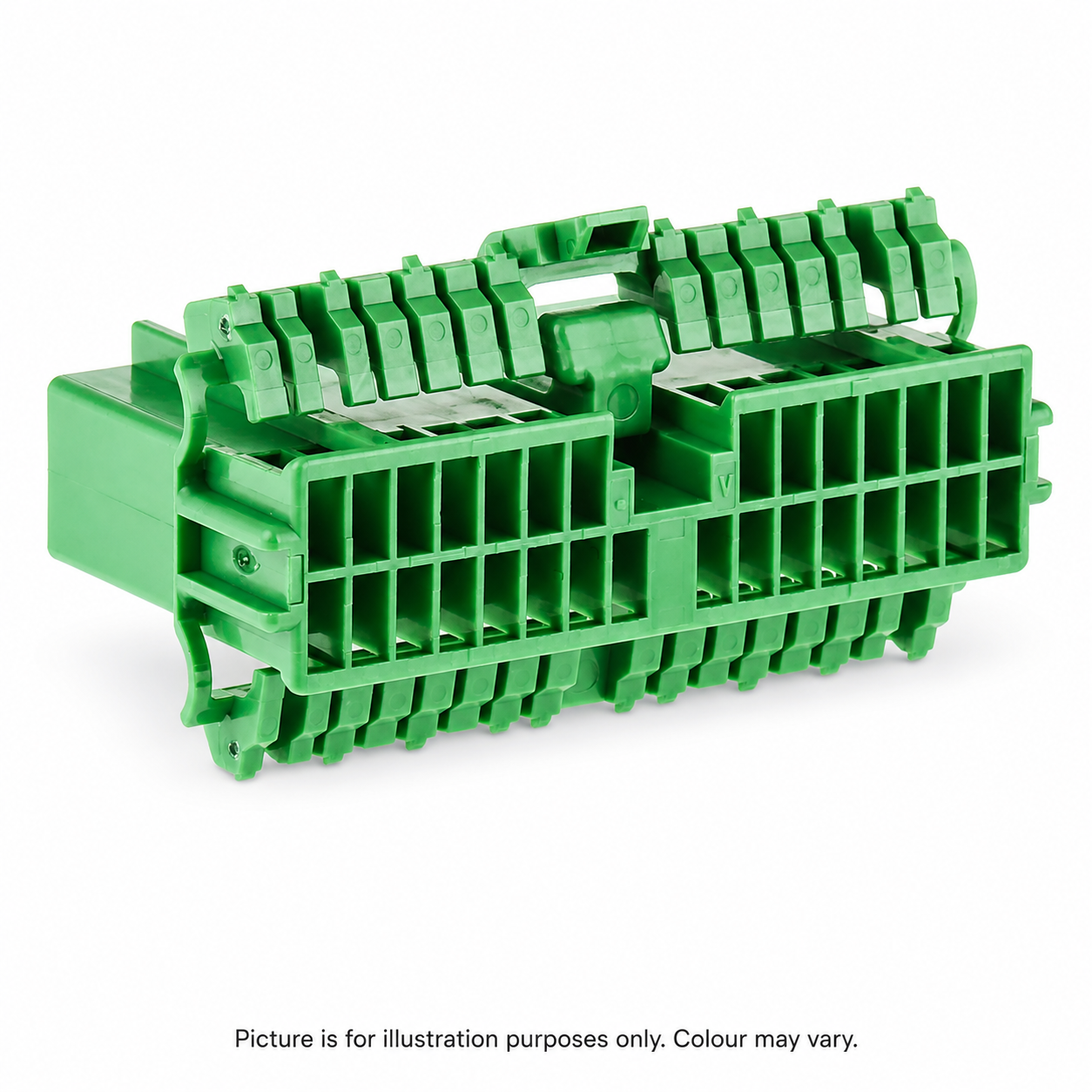

JAE IL-AG5 30-Way Female Automotive Connector Housing – Green

£2.25

Excluding VAT. Shipping calculated at checkout.

Quantity

✓

Professional-grade productsSelected and tested by vehicle installers

✓

Expert supportPractical advice from the Fir Tree team

✓

Secure checkoutSafe online payment through Shopify

Delivery and support+

Delivery options are shown at checkout. If you need help confirming compatibility before ordering, contact the Fir Tree team.

Not sure whether this product is right for your vehicle?

Ask Fir Tree →

Product details

30-way female automotive connector housing from the JAE IL-AG5 series, designed for secure, high-density connections in vehicle instrument panels, wiring looms and automotive control systems.

This yellow two-row socket housing uses crimp termination and features a mechanical mating lock, keyed housing design and double contact-retention mechanism for dependable vehicle electrical connections.

Key features

30-way female automotive connector housing
JAE IL-AG5 series
Manufacturer part number: IL-AG5-30S-D3C1
Two-row socket housing
Cable-mounted design
Crimp termination
3A current rating
Yellow PBT housing
Mechanical lock helps ensure positive mating
Double-lock contact retention helps prevent terminals becoming dislodged
Keyed housing configuration helps prevent mismating
Operating temperature: -40°C to +85°C

Dimensions

Width: 46.7mm
Height: 16.6mm
Depth: 24.6mm

Typical applications

Suitable for automotive dashboards, instrument panels, vehicle wiring harnesses, control modules and other low-voltage systems requiring a compact 30-pin female connector housing.

Please note: Connector housing only. Crimp contacts, mating header and cable are not included unless stated separately.

Please note: Picture is for illustration purposes only. Colour may vary.
