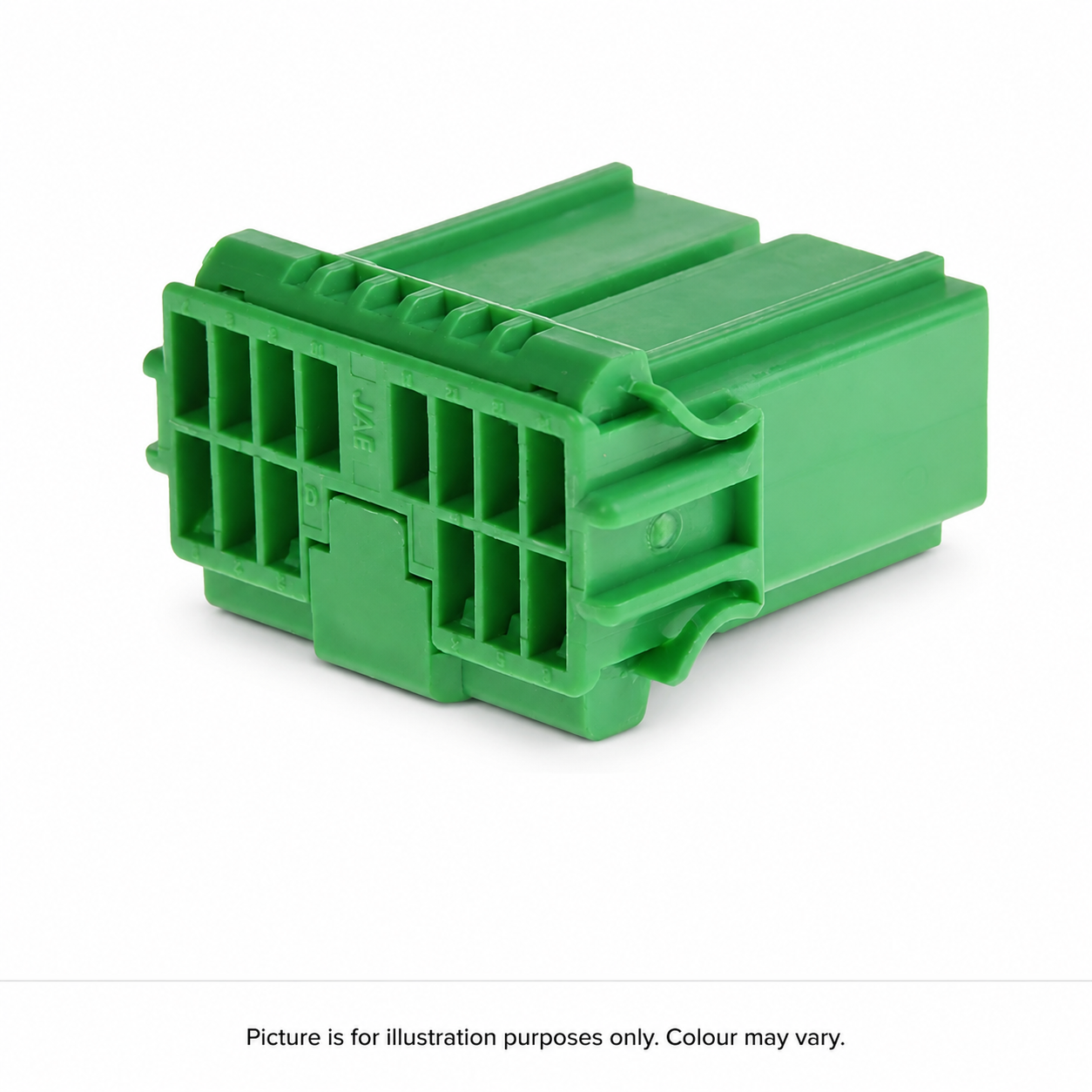

JAE IL-AG5 14-way female automotive connector housing – picture for illustration purposes only, colour may vary

Fir Tree Technology

JAE IL-AG5 14-Way Female Automotive Connector Housing – Green

£1.13

Excluding VAT. Shipping calculated at checkout.

Quantity

✓

Professional-grade productsSelected and tested by vehicle installers

✓

Expert supportPractical advice from the Fir Tree team

✓

Secure checkoutSafe online payment through Shopify

Delivery and support+

Delivery options are shown at checkout. If you need help confirming compatibility before ordering, contact the Fir Tree team.

Not sure whether this product is right for your vehicle?

Ask Fir Tree →

Product details

14-way female automotive connector housing from the JAE IL-AG5 series, designed for dependable cable-to-board connections in vehicle instrument panels and automotive electrical systems.

The green, two-row housing uses crimp termination and incorporates a mechanical mating lock, double contact-retention mechanism and keyed housing design to help prevent incorrect connection.

Key features

14-way female automotive connector housing
JAE IL-AG5 series
Manufacturer part number: IL-AG5-14S-D3C1-A
Two-row configuration
Cable-mounted housing
Crimp termination
3A current rating
Green PBT housing
Mechanical lock for secure mating
Double-lock contact retention helps prevent terminals becoming dislodged
Keyed housing configuration helps prevent mismating
Operating temperature: -40°C to +85°C

Dimensions

Width: 26.7mm
Height: 16.6mm
Depth: 24.6mm

Typical applications

Suitable for automotive instrument panels, vehicle wiring looms, control modules and other low-voltage vehicle electrical connections requiring a compact 14-pin female connector housing.

Please note: Connector housing only. Crimp contacts, mating header and cable are not included unless stated separately.

Please note: Picture is for illustration purposes only. Colour may vary.
