2 Way Male 2.8mm Mini Latch Housing

£0.28

Excluding VAT. Shipping calculated at checkout.

Choose an option

Quantity

✓

Professional-grade productsSelected and tested by vehicle installers

✓

Expert supportPractical advice from the Fir Tree team

✓

Secure checkoutSafe online payment through Shopify

Delivery and support+

Delivery options are shown at checkout. If you need help confirming compatibility before ordering, contact the Fir Tree team.

Not sure whether this product is right for your vehicle?

Ask Fir Tree →

Product details

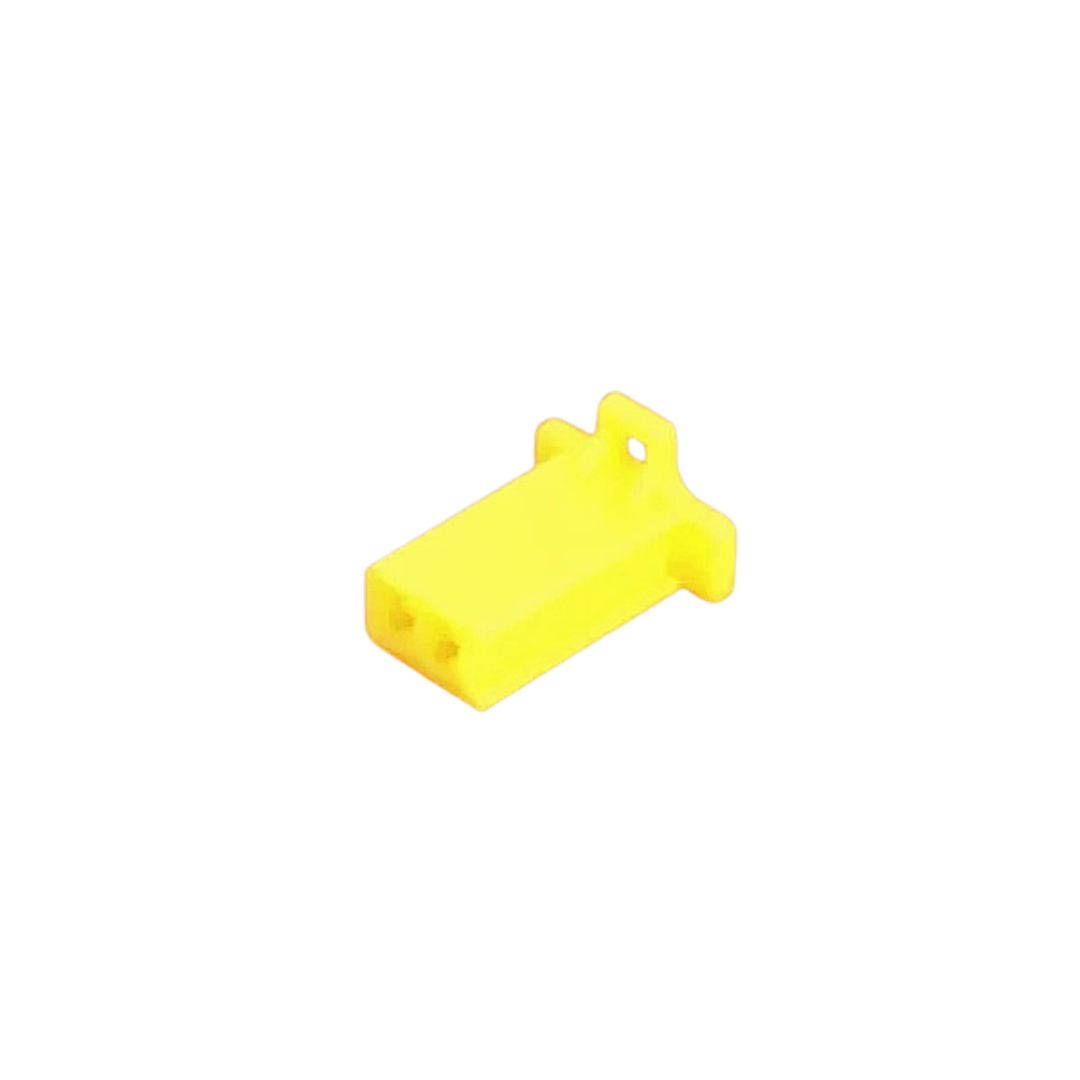

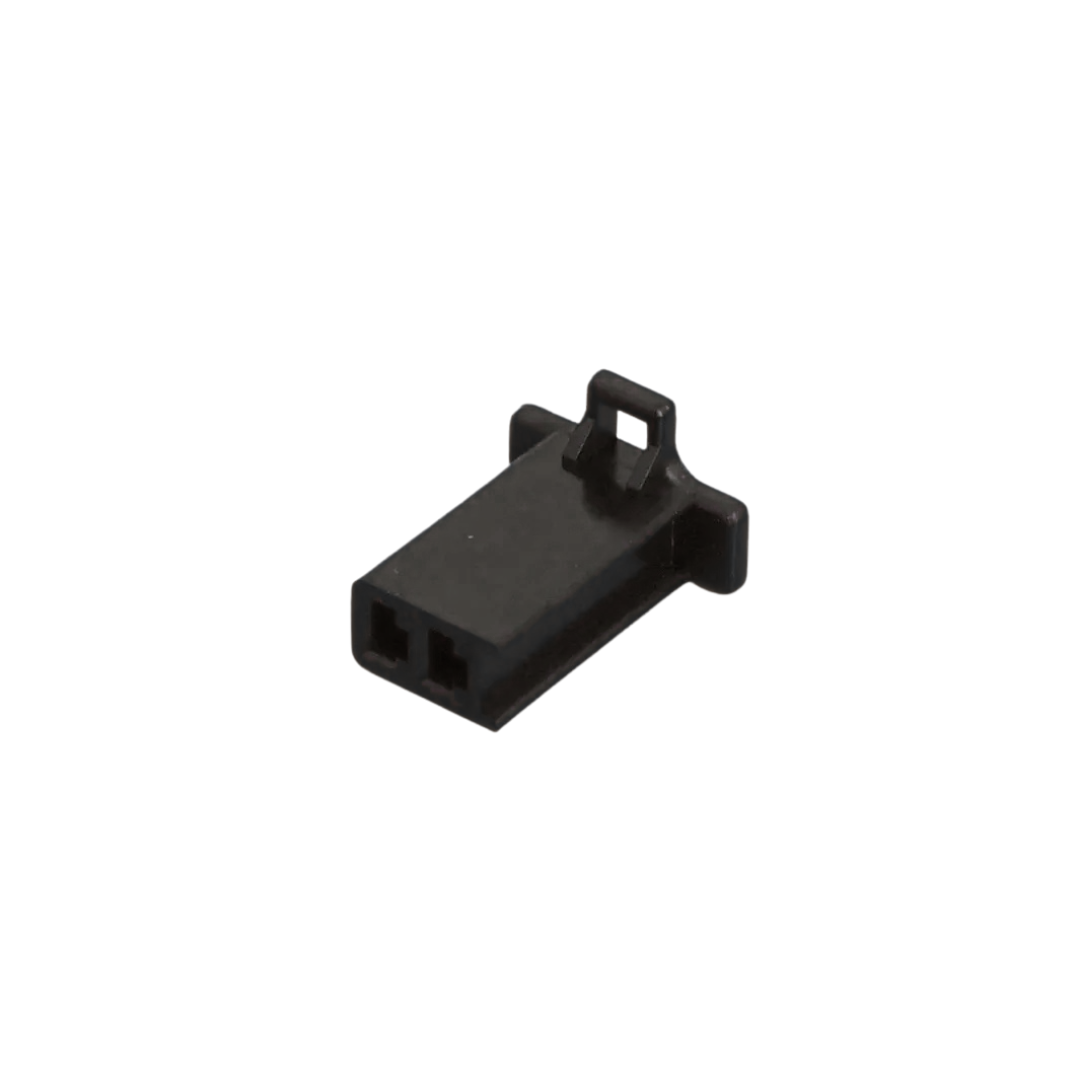

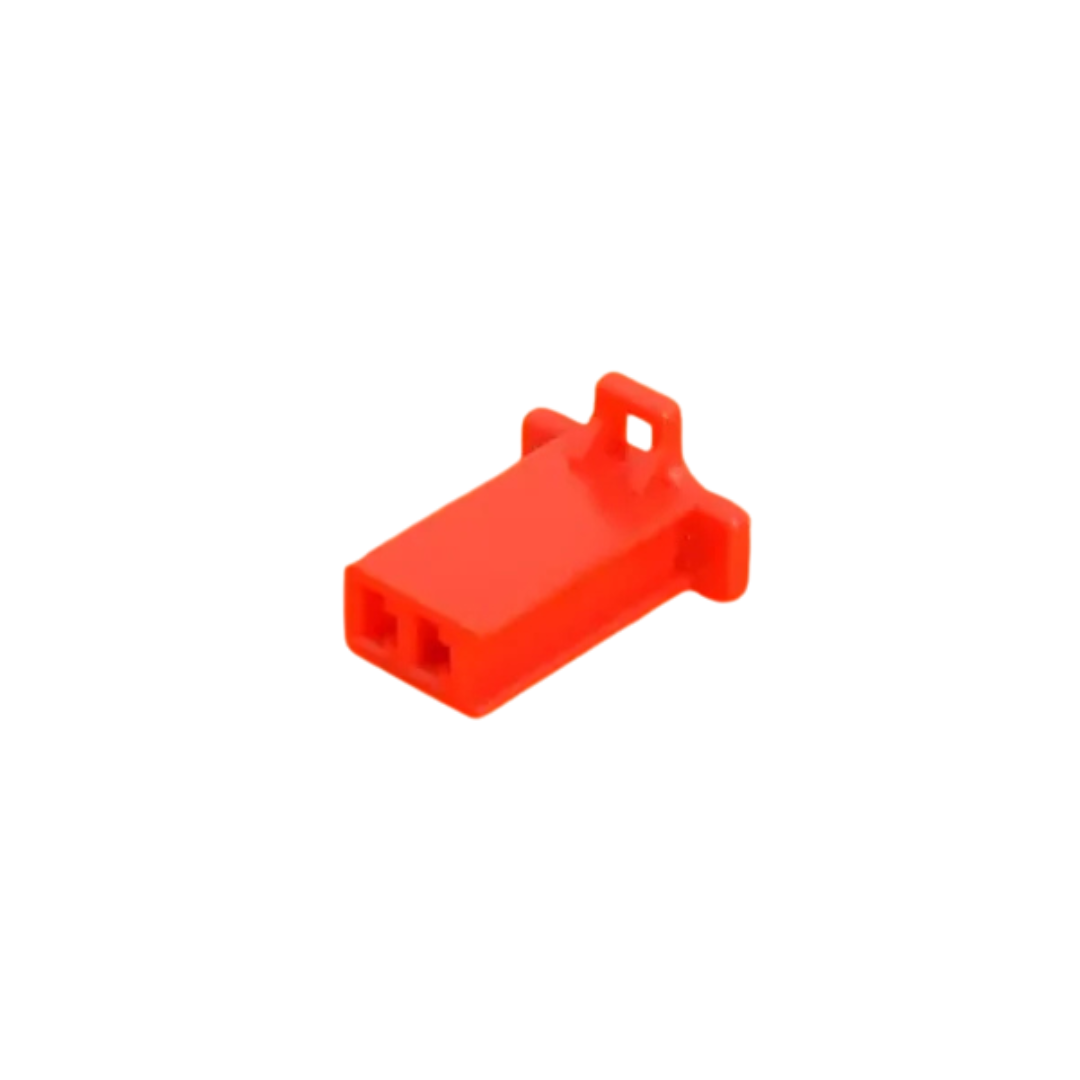

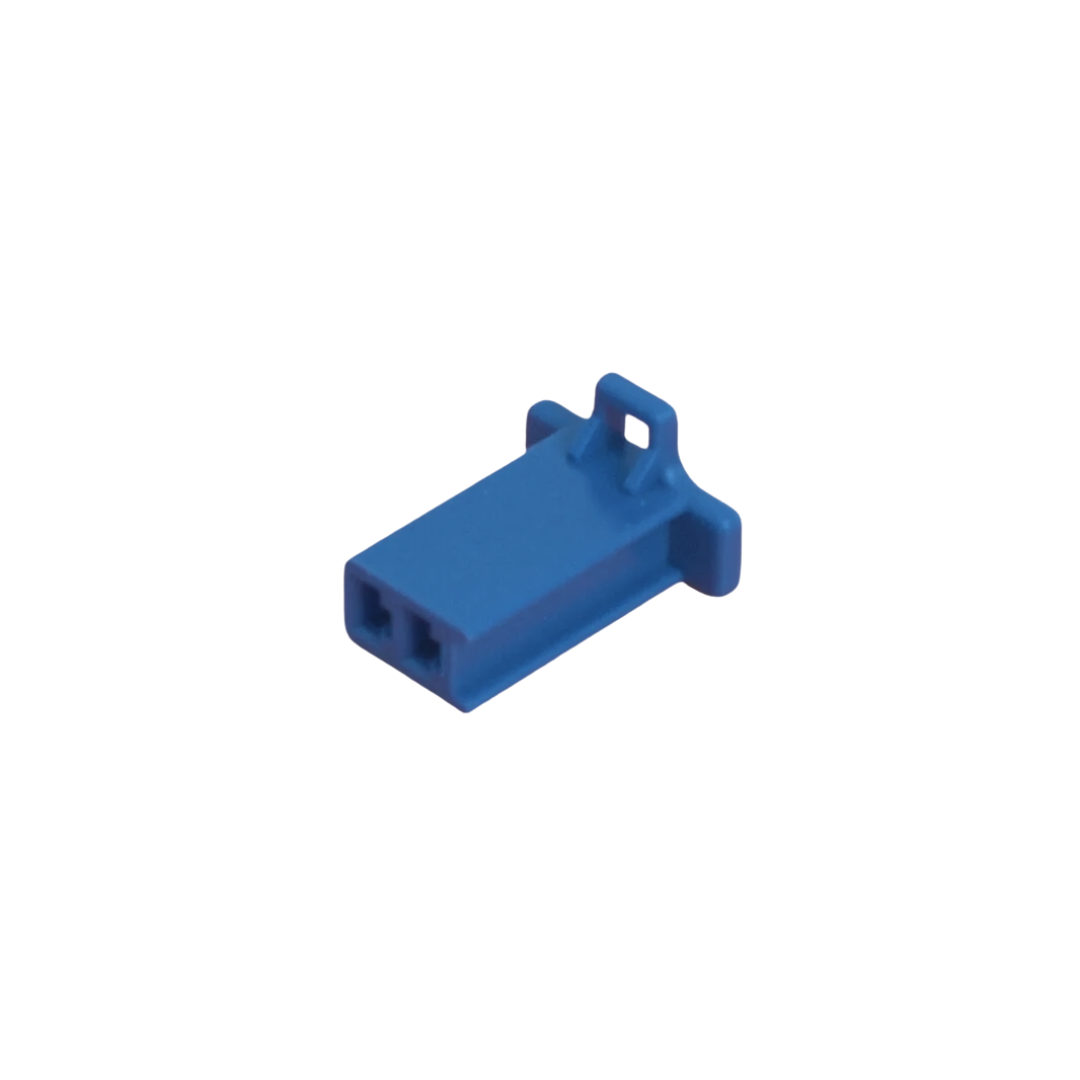

Automotive Connector Housing – 2-Way 2.8 mm Mini Latch (Male)
Compatible with standard 2.8 mm female receptacle terminals

Designed for dependable electrical performance in demanding automotive environments, this 2-way 2.8 mm mini “male” plug housing provides a compact, secure interface for power and signal circuits. Pair with 2.8 mm open-barrel female receptacle terminals to build robust looms for vehicles and machinery.

Key Features:

Series: 2.8 mm mini blade connector standard
Connector Type: Male plug housing (accepts female receptacle contacts)
Ways: 2 positions
Termination: Crimp – uses 2.8 mm female receptacle terminals (open-barrel)
Wire Size Range: 0.50–1.00 mm² (approx. 20–18 AWG), per chosen terminal
Application: Designed to mate with matching 2-way mini female housings for quick-connect harness joints
Retention/Locking: Polarised body with integral latch for positive engagement; anti-backout tangs via terminal design
Durable Design: Engineered to withstand vibration, heat cycling, and harsh automotive conditions; current rating dependent on selected terminals and wire gauge
