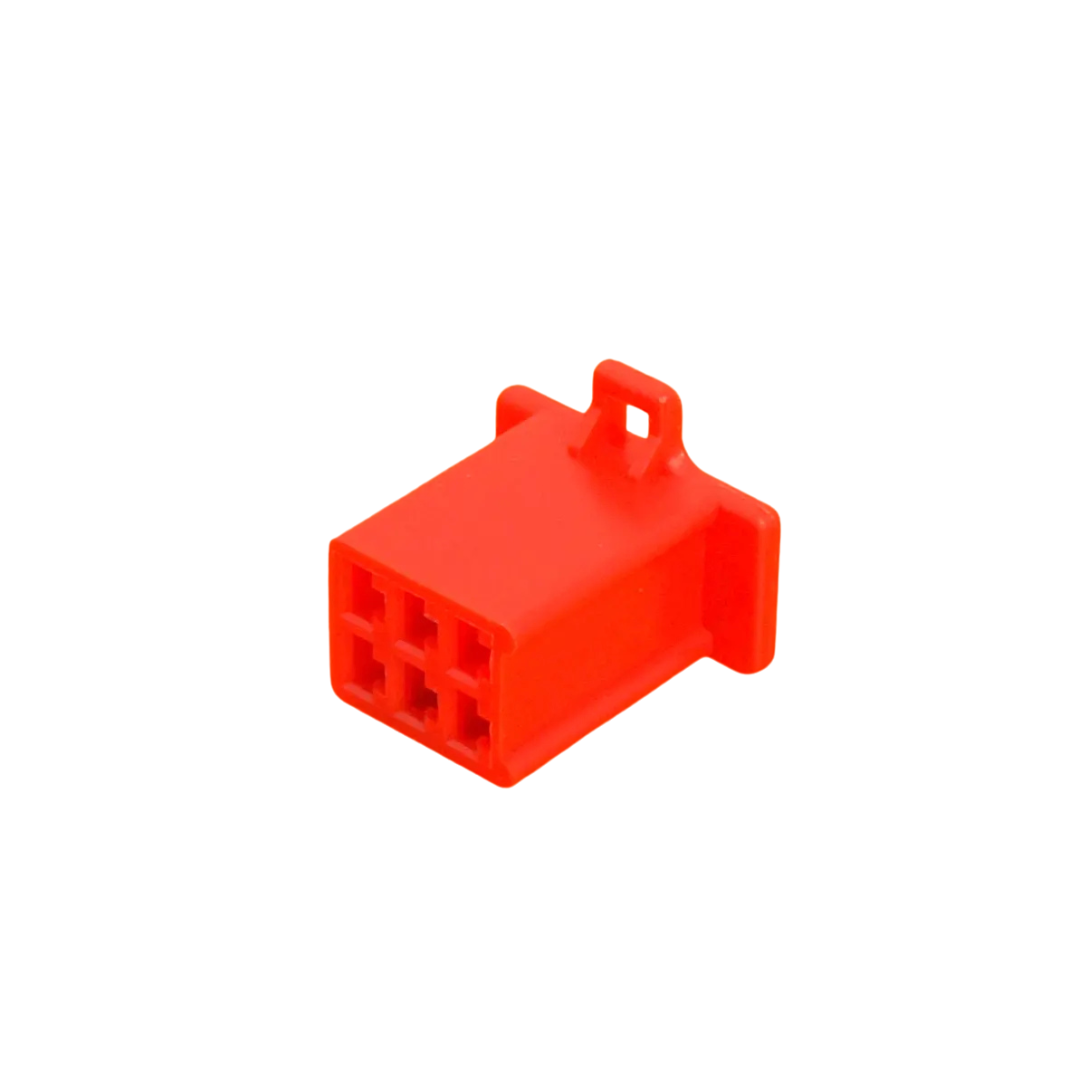

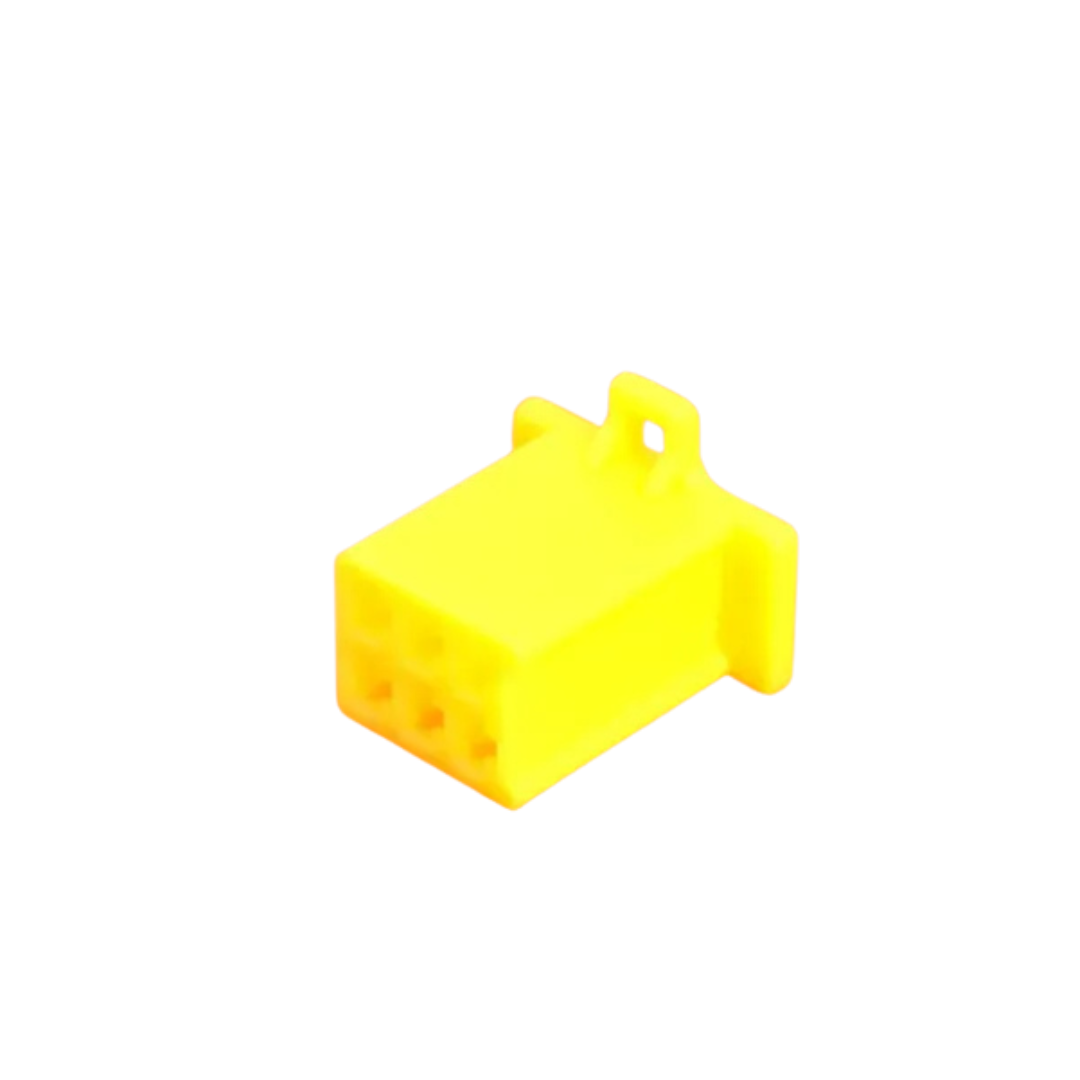

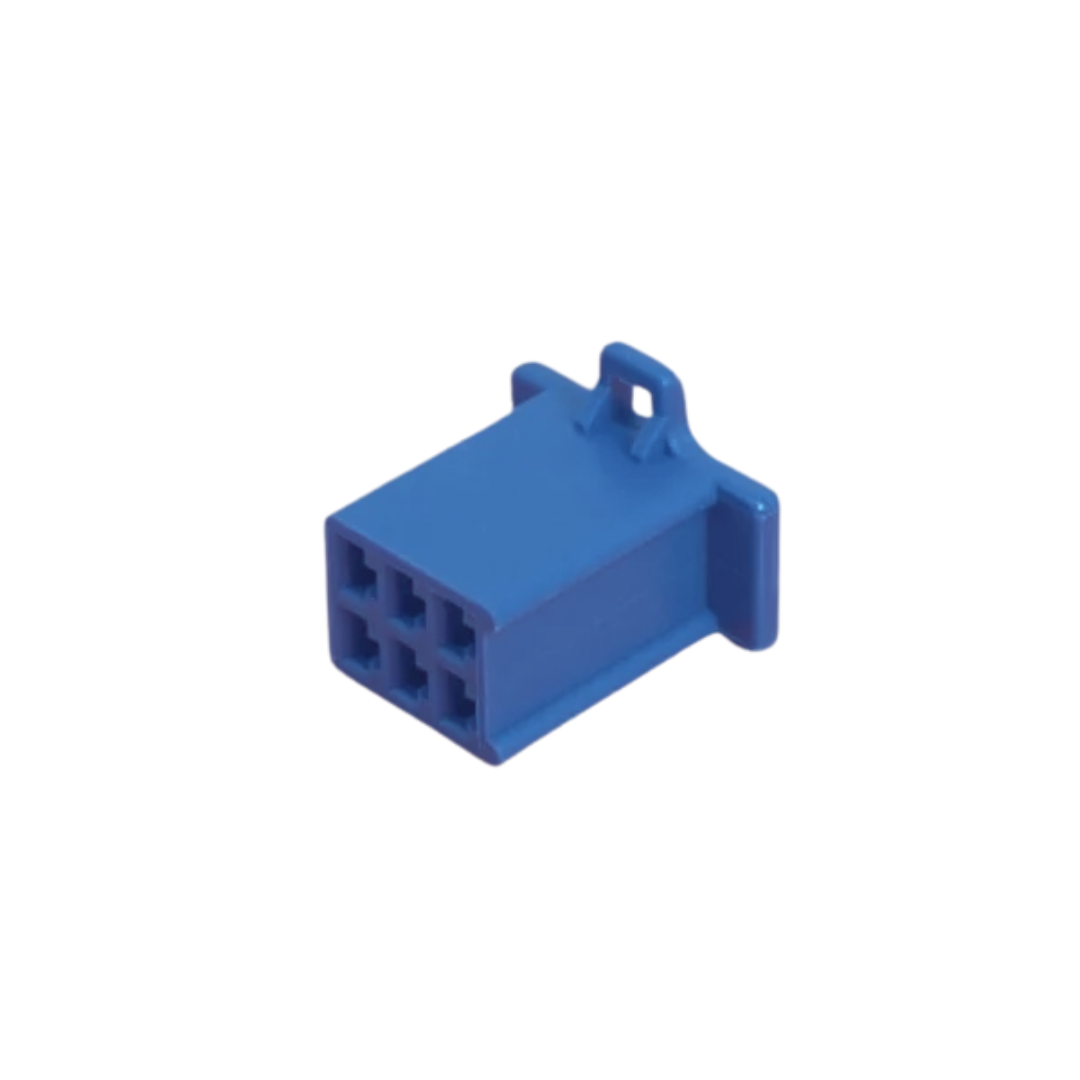

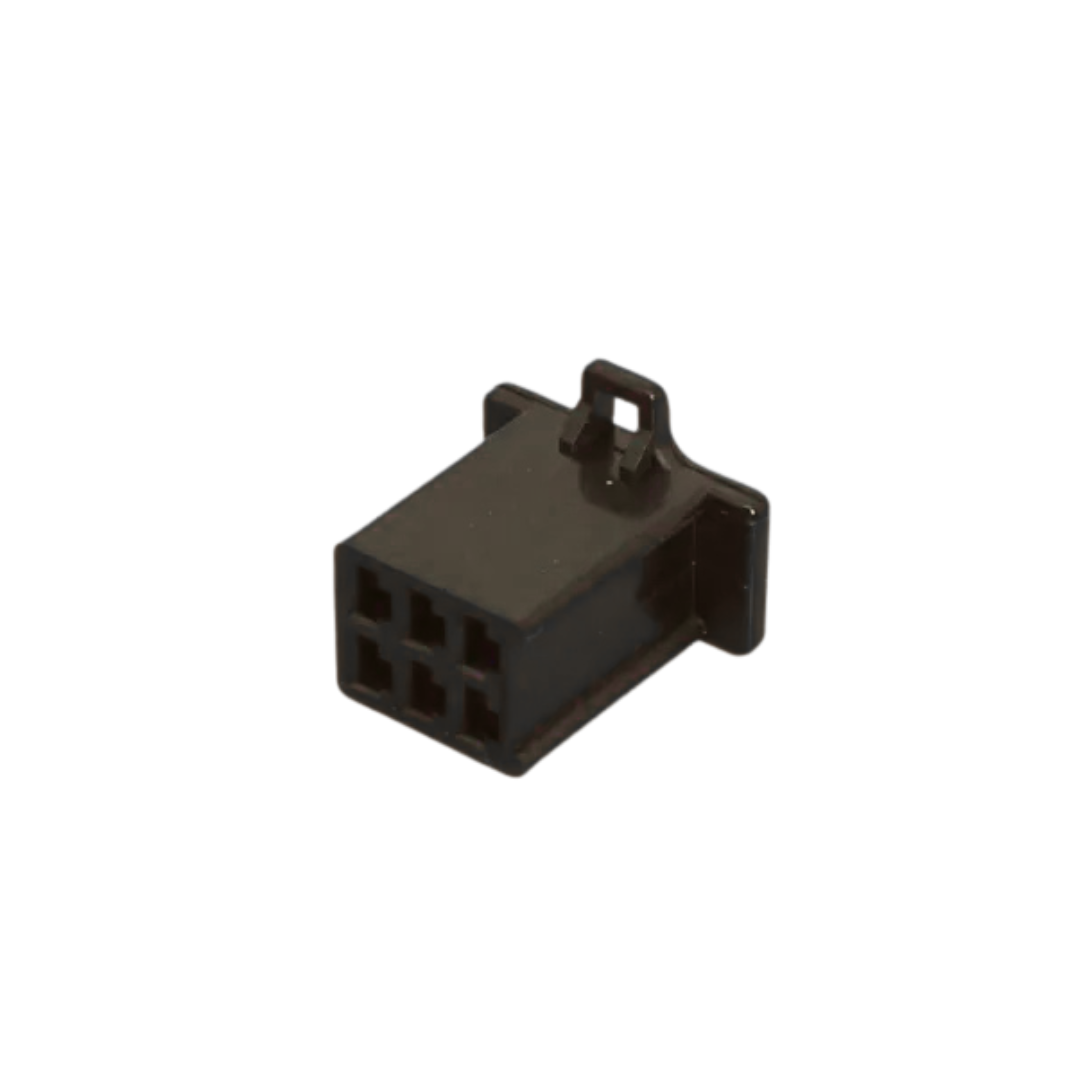

6 Way Male 2.8mm Mini Latch Housing - Multiple Colours

Automotive Connector Housing – 6 Way 2.8 mm Mini Latch (Male)
Compatible with standard 2.8 mm female receptacle terminals

Designed for dependable electrical performance in demanding automotive environments, this 6 way 2.8 mm mini “male” plug housing provides a compact, secure interface for power and signal circuits. Pair with 2.8 mm female receptacle terminals to build robust looms for vehicles and machinery.

Key Features:

• Series: 2.8 mm mini blade connector standard
• Connector Type: Male plug housing (accepts female receptacle contacts)
• Ways: 6 positions
• Termination: Crimp – uses 2.8 mm female receptacle terminals (open-barrel)
• Wire Size Range: 0.50–1.00 mm² (approx. 20–18 AWG), per chosen terminal
• Application: Designed to mate with matching 6 way mini female housings for quick-connect harness joints
• Retention/Locking: Polarised body with integral latch for positive engagement; anti-backout tangs via terminal design
• Durable Design: Engineered to withstand vibration, heat cycling, and harsh automotive conditions; current rating dependent on selected terminals and wire gauge
