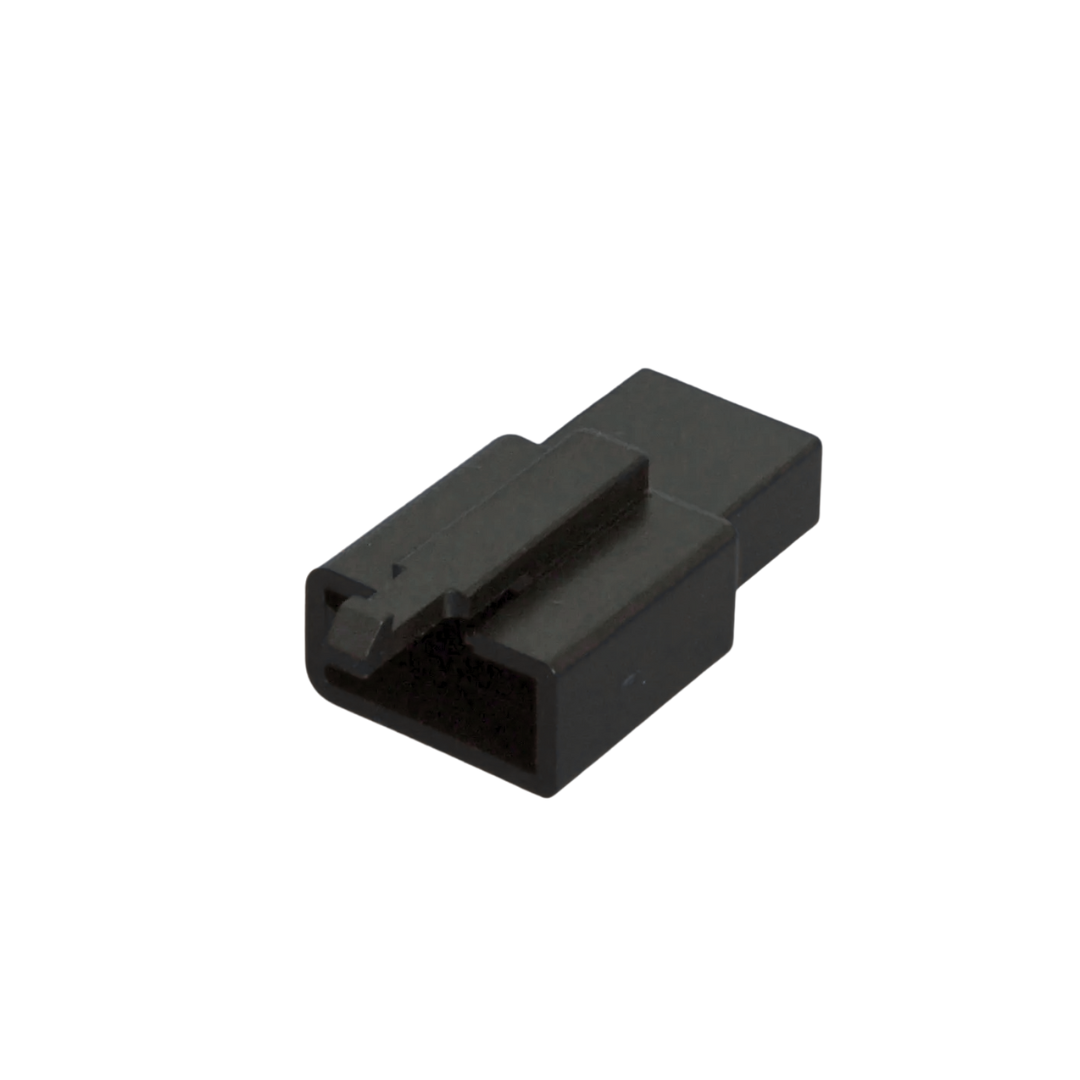

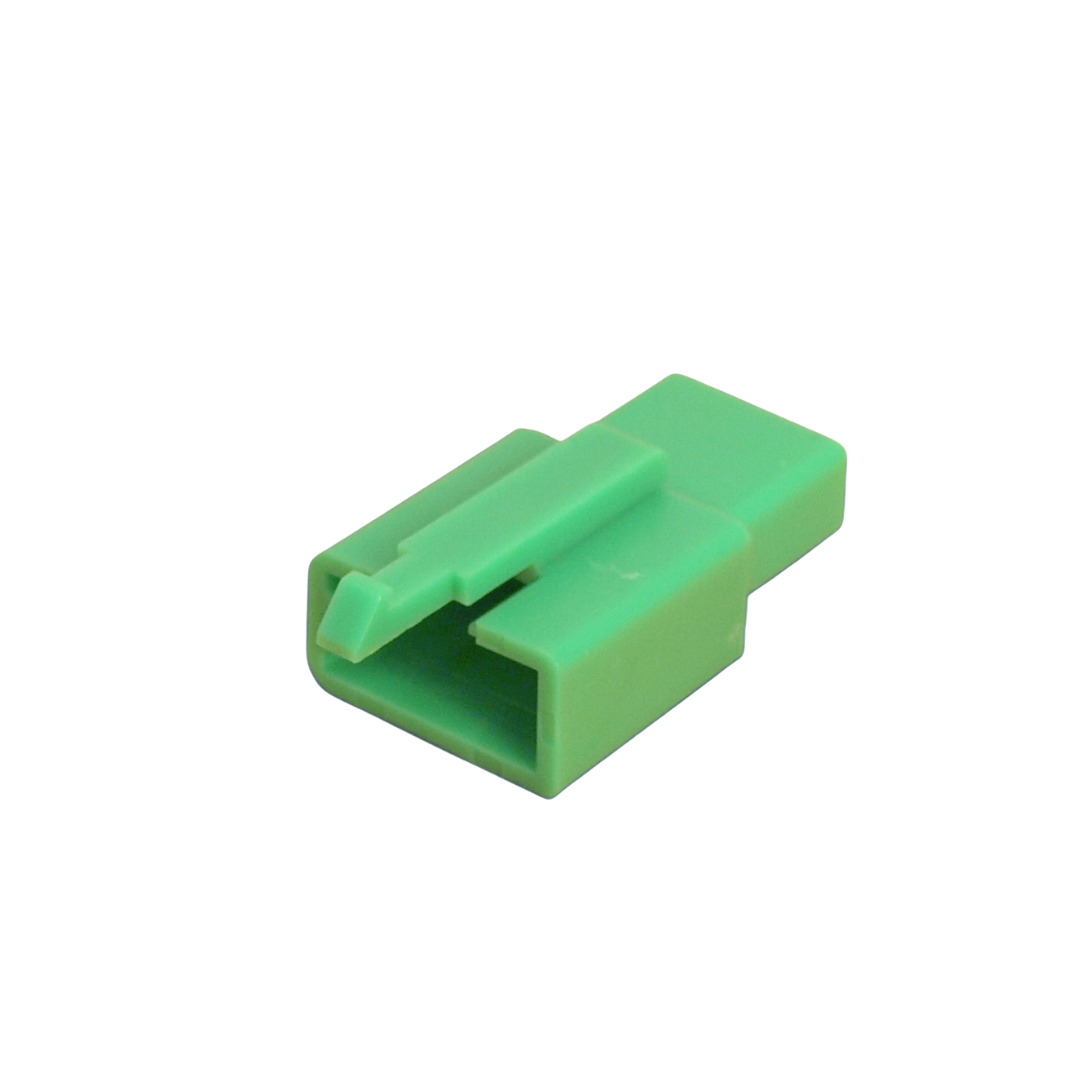

3 Way Female 2.8mm Mini Latch Housing - Multiple Colours

£0.30

Excluding VAT. Shipping calculated at checkout.

✓

Professional-grade productsSelected and tested by vehicle installers

✓

Expert supportPractical advice from the Fir Tree team

✓

Secure checkoutSafe online payment through Shopify

Delivery and support+

Delivery options are shown at checkout. If you need help confirming compatibility before ordering, contact the Fir Tree team.

Not sure whether this product is right for your vehicle?

Ask Fir Tree →

Product details

Automotive Connector Housing – 3-Way 2.8 mm Mini (Female)
Compatible with standard 2.8 mm male spade terminals and matching 3-way mini “male” housings

Designed for dependable electrical performance in demanding automotive environments, this compact 3-way 2.8 mm mini “female” socket housing provides a secure, polarised interface for power and signal circuits. Pair with 2.8 mm male spade terminals to build robust looms for vehicles and machinery.

Key Features:

Series: 2.8 mm mini blade connector standard
Connector Type: Female socket housing (accepts male spade contacts)
Ways: 3 positions
Termination: Crimp – uses 2.8 mm male spade terminals
Wire Size Range: 0.50–1.00 mm² (approx. 20–18 AWG, per chosen terminal)
Application: Designed to mate with matching 3-way mini male housings for compact, serviceable harness joints
Retention/Locking: Polarised body with integral latch; terminal retention via internal tangs; strain relief guided by terminal selection
Durable Design: Engineered to withstand vibration, heat cycling, and harsh automotive conditions; overall rating depends on terminal and wire gauge selection
